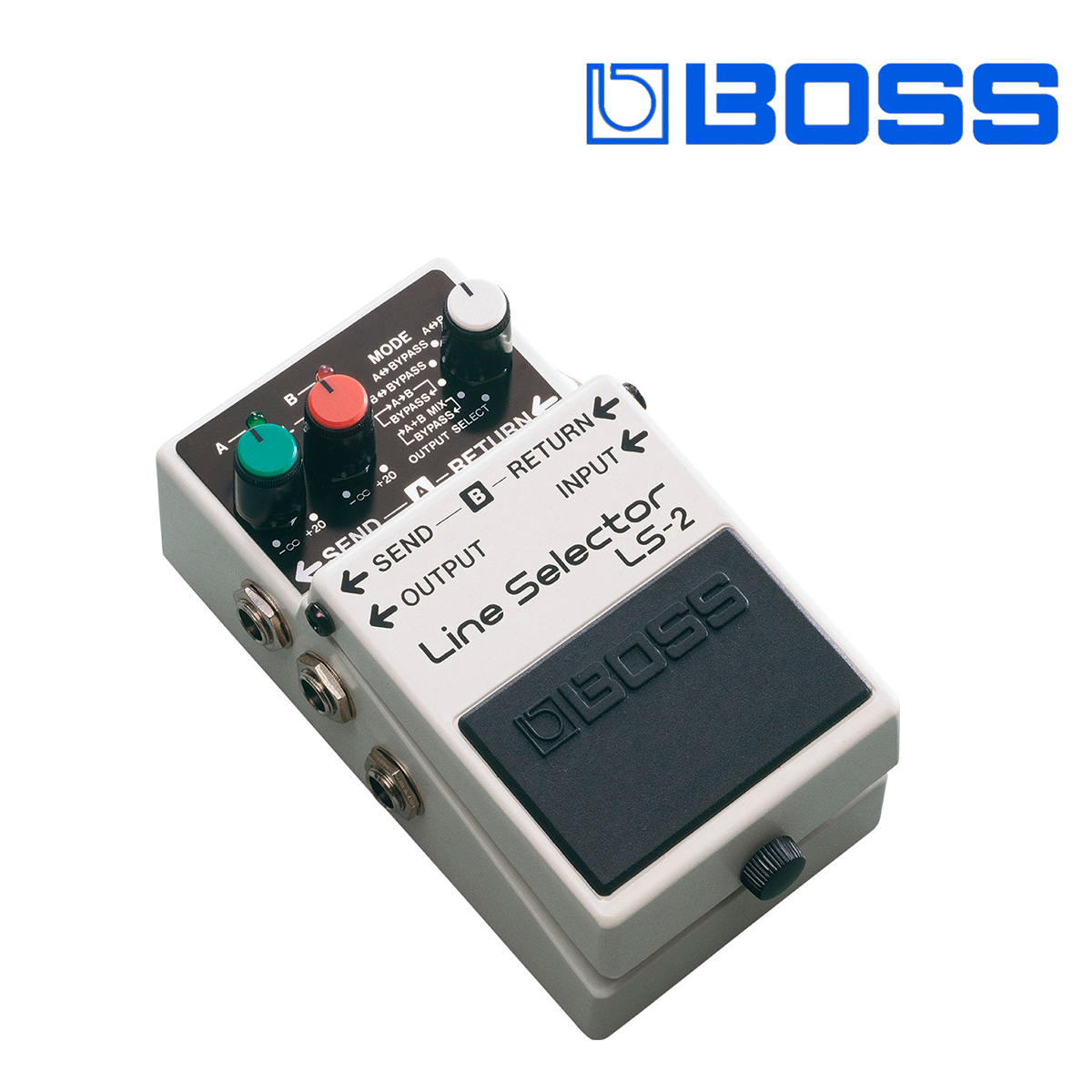

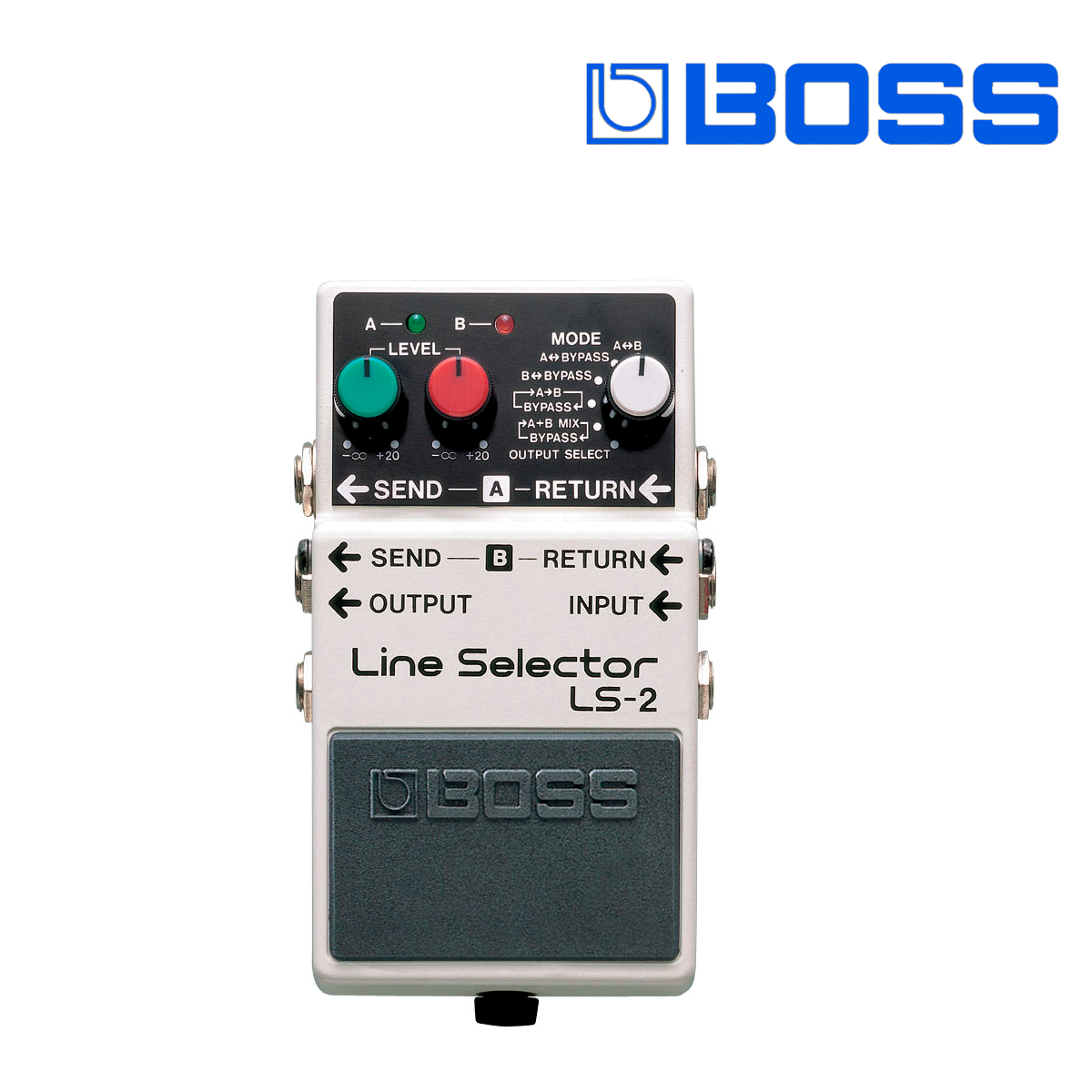

PEDAL COMPACTO SELECCIONADOR DE LINEA (UNA ENTRADA-DOS SALIDAS) LS-2

nbsp;

Simplifica tu Configuración

El LS-2 es la forma fácil de cambiar ajustes entre varios efectos o amplificadores, o direccionar señales de entrada y salida. Cuando se utiliza con un adaptador CA, el LS-2 puede servir como alimentación para varios pedales BOSS compactos.

Nominal Input Level-20 dBuInput Impedance1 M ohmNominal Output Level-20 dBuOutput Impedance1 k ohmsRecommended Load Impedance10 k ohms or greaterBypassBuffered bypassControlsMODE selector switch
LEVEL knobs A/B
Pedal switchIndicatorLine indicator A/B (Used for indication of check battery)ConnectorsINPUT jack: 1/4-inch phone type
SEND jacks A/B: 1/4-inch phone type
RETURN jacks A/B: 1/4-inch phone type
OUTPUT jack: 1/4-inch phone type
DC IN/OUT jackPower SupplyCarbon-zinc battery (9 V, 6F22) or Alkaline battery (9 V, 6LR61)
AC adaptor (PSA series: sold separately)Current Draw25 mAExpected battery life under continuous useCarbon: Approx. 14 hours
Alkaline: Approx. 30.5 hours
* These figures will vary depending on the actual conditions of use.AccessoriesOwner's manual
Leaflet ("USING THE UNIT SAFELY," "IMPORTANT NOTES," and "Information")
Carbon-zinc battery (9 V, 6F22)Options (sold separately)AC adaptor: PSA seriesSize and WeightWidth73 mm
2-7/8 inchesDepth129 mm
5-1/8 inchesHeight59 mm
2-3/8 inchesWeight (including battery)410 g
15 oz.
